Introduction to Fusion Basics Poster

Version 68 will be posted by the end of February, 2025, perhaps sooner.

Our "Introduction Talking Point" poster of "Fusion Basics" The Science of Fusion Physics" has colorful diagrams explaining many basic fusion concepts for the science buff, from 10 years old and older.  For the novice there is a lot of science terminology used perhaps without adequate background explanation for good understanding.  Certainly a teacher's narrative would do much to provide a more complete picture.  Do enhance your understanding of "fusion" which is the basis for a new source of electricity generation, also popularly called "fusion power" and sometimes fusion energy.

Editor's Note:
We have both sides now present, and continue to edit this page to enhance wording to establish the value of downloading the Poster and printing on normal size paper, along with printing instructions to get a single sheet.  A larger version, the "Primer of Fusion Basics" will be ready in February 2025.  Come back and read it.  It only has 10% of what is on the Introduction To Fusion poster, so will be of greater value, with 5 times as much information on Fusion concepts.  The larger version is 11x17 and is suitable for wall hanging in the classroom.  Printing instructions will include 2 sheet instructions, and how to cut and tape it together, or 6 sheet.  Better is to order the laminated version when it is available.  Come back in February for the "Primer of Fusion Basics" poster, which is also free for educational uses.


                   The below Introduction Poster is Free for Educational Uses.  Contact us for other uses.
                   The "Introduction" Series are intended to be printed on Letter Size Paper, as handouts to the student.
                   We found a PDF 2 page format that eases correct printing on a single sheet.  Click here to download it.

Introduction to Fusion Basics Poster

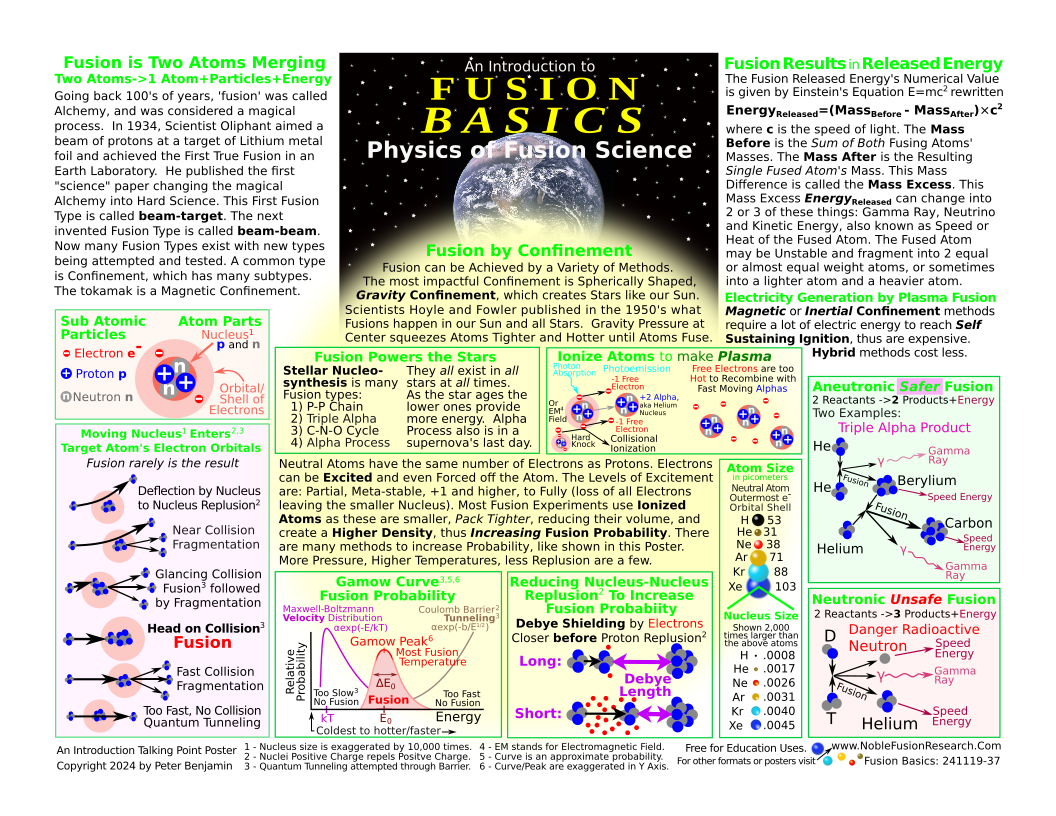

An Introduction to Fusion Basics: Physics of Fusion Science - Front - A Talking Point Poster
An Introduction to Fusoin Basics: Physics of Fusion Energy - back side

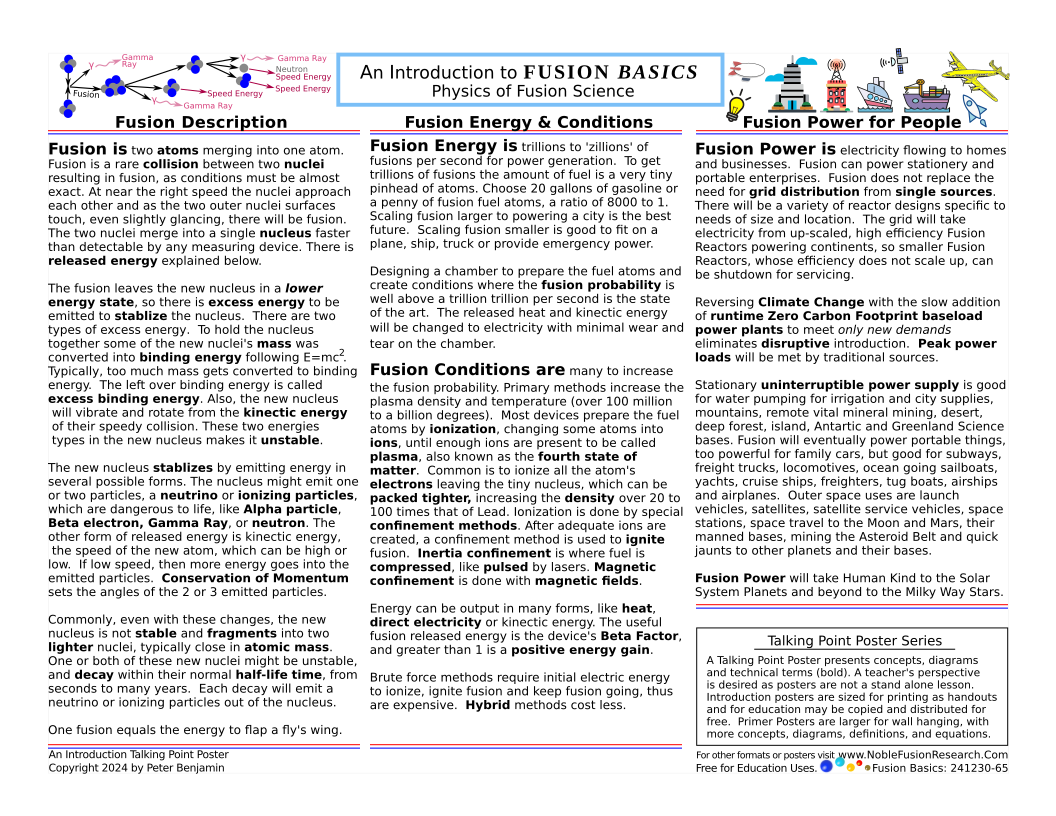

An Introduction to Fusion Basics: Physics of Fusion Science - Back - A Talking Point Poster

Do contact us with possible corrections.  This poster is version 65 approved for release on 2024/12/30  The version is in the lower right corner.

Additional download formats (version 20241215-56):

  • fusion.basics.introduction.pdf      800 Kilobytes - RECOMMENDED as printable both sides (internal Inkscape 1.3.2 SVG pages)
  • fusion.basics.introduction.webp    504 Kilobytes - coming soon
  • fusion.basics.introduction.jpg       345 Kilobytes - coming soon
  • fusion.basics.introduction.svg      650 Kilobytes- coming soon



Talking Point Posters

The "Talking Point" Poster Series presents concepts and details which require additional explanation.  Planned are these additional posters in the Fusion Series.  First, there are 4 more Letter Size Printable "Introduction" posters Free for Educational Uses, and five "Primer" posters.  The latter are larger, 11x17 inch posters with greater explanations.  Also, two Basic Plasma Physics Posters will supplement the Fusion posters.
